CarProg based Mercedes Benz Transponder key immobiliser system used on Mercedes Benz cars 1997-2001 immobilizers programming and transponder key generating and programming software.

Carprog Software & Hardware Recommend:

Works on: MB A-class 1997-2001, C-class 1996-1999, E-class 1997-1999, CLK 1998-2001, Sclass 1997-1998.

It support infrared read and write NEC key and Motorola MCU key. Note: so far AK500PRO doesn’t support NEC eeprom key programming, but support AK500pro NEC eeprom key calculation. KEYLESS GO function: If you want to use KEYLESS GO function: the key used to make key must be new and blank key, it can’t be used key. Generate key online no tokens. Update new software free no tokens. Functions: 1.Make key for all car even if car with BGA KEY the new key BY OBD2 exclusive only with our device up to 2015.

You need just connect 5 wires to immobiliser connection points as on picture and program transponder key.

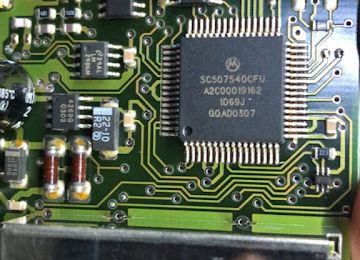

Type 1: Immobiliser with Motorola processor HC05X32 mask set 2D59J. Tested also with 5WK4688 (mask set 0D53J). Remove immobiliser from car, connect adapter A10 like in picture:

Read immobiliser data, select key number for programming, set empty PCF7935 in to CarProg antenna and write key.

Type 2: Immobiliser with Motorola processor HC05X32 mask set 1D69J.

Remove immobiliser from car, connect adapter A10 like in picture:

Read immobiliser data, select key number for programming, set empty PCF7935 in to CarProg antenna and write key.

8

Mercedes E210 Key Mcu Pinouts To Carprog Auto Diagnostic Tool For Toyota Tundra

Type 3: Immobiliser with Motorola processor HC05X32 mask set 0D69J ( 5WK4680 with mask set 0D69J, 5WK4696 with mask set 0D66J). Remove immobiliser from car, connect adapter A10 like in picture:

Mercedes E210 Key Mcu Pinouts To Carprog Auto Diagnostic Tool With Phone App

Read immobiliser data, select key number for programming, set empty PCF7935 in to CarProg antenna and write key.
